供应NYP转子泵 高粘度转子泵 沥青保温齿轮泵 红旗华潮
概述：
NYP系列内齿泵又称高粘度齿轮泵，是根据石油、化工、涂料、油脂、医药、染料、食品等行业的需求，研制开发的新型容积式泵，由于该产品可选用不同的材质和其du特的结构，因此广泛应用于不同性质，不同粘度的介质输送。
适用介质温度：-10℃—200℃。
适用介质粘度：1.0cst—300,000cst。
结构型式:
工作原理:
具有内齿的驱动齿轮（外转子）带动内转子在全封闭的泵体内作同方向转动，泵体和前盖的月牙板使吸入口和排出口隔开。转动时在吸入口形成负压，液体被吸入，转子将液体带到排出口，受压排出泵体，完成了液体的输送。
泵主要有内外转子，轴，泵体，前盖，托架，密封，轴承等组成。密封有机械密封和填料密封两种形式，对于高温、高粘稠度及腐蚀性较强的介质，选用填料密封。
输送易结晶物料时，在前盖和泵体上可设计带有保温夹套，工作时通蒸汽保温融化。泵可配保护阀，当泵或管路系统超压时，保护阀打开，形成内部回流，保证系统稳定。

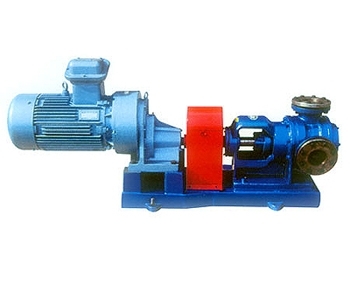

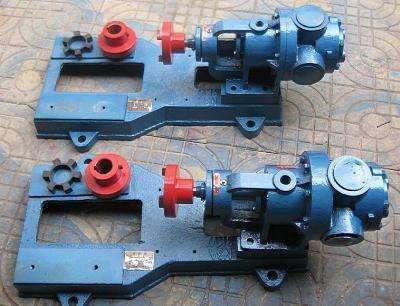

泵装置由泵、电机和底座组成。传动方式有桥式和直联式两种。从电机端向泵看，为顺时针旋转
优点：
（1）输送液体平稳，无脉动，振动小，噪音低。
（2）有很强的自吸性能。
（3）正确选用零件材料，可输送多种有腐蚀性的介质，使用温度可200℃。
（4）内外转子转向相同，磨损小，使用寿命长。
（5）泵的转速与流量呈线性函数关系，可适当改变转速来改变泵的流量。
（6）特别适用高粘度稠度介质的输送。
● 结构
泵主要有内、外转子、轴、泵体、前盖、托架、密封、轴承等组成。密封有机械密封和填料密封两种形式，对于高温、高粘稠度及腐蚀性较强的介质，选用填料密封。输送易结晶物料时，在前盖和泵体上可设计带有保温夹套，工作时通过蒸汽保温融化。从主轴外伸端向泵看为顺时针旋转。
技术参数：
|
型号 |
通径mm |
理论排量 |
粘度 |
转速 |
压差(MPa) |
连接形式 |
|||
|
0.4 |
0.6 |
0.8 |
1.0 |
||||||
|
轴功率(kw)流量(L/min) |
|||||||||
|
NYP0.78 |
15 |
0.78 |
20 |
1390 |
0.17/9.3 |
0.23/9.0 |
0.28/8.8 |
0.32/8.6 |
G1/2" |
|
60 |
1390 |
0.18/9.5 |
0.24/9.2 |
0.28/9.0 |
0.33/8.9 |
||||
|
200 |
1390 |
0.31/10.4 |
0.35/10.2 |
0.39/10.0 |
0.43/9.9 |
||||
|
600 |
1390 |
0.39/10.4 |
0.44/10.3 |
0.48/10.3 |
0.52/10.2 |
||||
|
2000 |
910 |
0.23/6.8 |
0.27/6.8 |
0.30/6.8 |
0.33/6.7 |
||||
|
60000 |
720 |
0.24/5.4 |
0.31/6.1 |
0.30/6.8 |
0.40/6.8 |
||||
|
NYP2.3 |
25 |
2.3 |
200 |
1400 |
0.38/28.4 |
0.49/27.5 |
|
|
G1" |
|
600 |
1400 |
0.59/29.2 |
0.65/28.8 |
|
|
||||
|
2000 |
1400 |
0.61/30.0 |
0.72/29.6 |
|
|
||||
|
6000 |
1400 |
0.92/31.9 |
0.96/31.7 |
|
|
||||
|
20000 |
910 |
0.61/19.9 |
0.68/19.7 |
|
|
||||
|
60000 |
720 |
0.77/16.32 |
0.83/16.2 |
|
|
||||
|
NYP3.6 |
40 |
3.6 |
20 |
1450 |
0.69/46.7 |
0.94/45.9 |
1.18/45 |
1.44/43.4 |
法兰 |
|
60 |
1450 |
0.81/47.5 |
1.09/46.7 |
1.37/45.9 |
1.57/44.7 |
||||
|
200 |
1450 |
1.06/49.7 |
1.31/49.2 |
1.56/48.8 |
1.79/47.3 |
||||
|
600 |
1450 |
1.45/49.9 |
1.61/49.6 |
1.77/49.3 |
1.93/49 |
||||
|
2000 |
960 |
1.28/34.3 |
1.41/33.8 |
1.54/33.7 |
1.65/33.6 |
||||
|
6000 |
640 |
1.08/23.0 |
1.18/22.9 |
1.28/22.9 |
1.37/22.8 |
||||
|
20000 |
583 |
1.22/20.5 |
1.24/20.4 |
1.25/20.4 |
1.38/20.3 |
||||
|
60000 |
455 |
0.84/16.3 |
0.91/16.2 |
0.98/16.1 |
1.01/16 |
||||
|
NYP7.0 |
40 |
7.0 |
20 |
1450 |
1.36/98.1 |
1.8/96 |
2.0/94.7 |
2.4/93 |
螺纹
|
|
60 |
1450 |
1.45/99 |
1.9/97 |
2.2/96.4 |
2.6/95 |
||||
|
200 |
1450 |
1.62/99.8 |
2.0/98 |
2.3/97.5 |
2.7/97 |
||||
|
600 |
960 |
1.4/62 |
1.6/65 |
1.8/44 |
2.0/64 |
||||
|
2000 |
960 |
1.8/67 |
2.0/66 |
2.3/65 |
2.6/65 |
||||
|
6000 |
640 |
1.5/44.5 |
1.7/44 |
1.8/44 |
2.0/44 |
||||
|
20000 |
583 |
1.6/40.5 |
1.9/40 |
2.1/40 |
2.2/40 |
||||
|
60000 |
455 |
1.46/31.5 |
1.8/31 |
1.9/31 |
2.0/31 |
||||
|
NYP24 |
50 |
24 |
20 |
720 |
1.8/165 |
2.3/161 |
2.8/158 |
3.4/155 |
法兰 |
|
60 |
720 |
2.0/166 |
2.6/164 |
3.1/162 |
3.7/158 |
||||
|
200 |
610 |
1.9/143 |
2.5/141 |
3.0/139 |
3.5/136 |
||||
|
600 |
541 |
2.1/127 |
2.6/125 |
3.0/124 |
3.5/122 |
||||
|
2000 |
475 |
2.2/112 |
2.6/111 |
2.9/110 |
3.4/109 |
||||
|
6000 |
357 |
2.0/85 |
2.3/84 |
2.6/83 |
2.9/83 |
||||
|
20000 |
303 |
1.9/72 |
2.2/72 |
2.4/72 |
2.6/71 |
||||
|
60000 |
228 |
1.6/54 |
1.8/54 |
2.0/54 |
2.3/54 |
||||
|
NYP52 |
50 |
52 |
20 |
720 |
4.3/362 |
5.8/355 |
6.9/348 |
8.1/340 |
螺纹 |
|
60 |
720 |
4.7/364 |
6.2/358 |
7.3/352 |
7.5/346 |
||||
|
200 |
610 |
4.6/309 |
5.9/304 |
6.9/300 |
8.0/294 |
||||
|
600 |
541 |
4.9/275 |
6.0/271 |
6.8/268 |
7.8/264 |
||||
|
2000 |
475 |
5.0/243 |
5.9/238 |
6.6/237 |
7.6/235 |
||||
|
6000 |
357 |
4.1/184 |
4.9/182 |
5.3/181 |
6.2/180 |
||||
|
20000 |
303 |
3.8/157 |
4.6/156 |
5.1/155 |
5.6/155 |
||||
|
60000 |
228 |
3.1/119 |
3.7/118 |
4.0/118 |
4.5/118 |
||||
|
NYP80 |
80 |
80 |
20 |
615 |
5.2/471 |
6.9/461 |
8.5/451 |
10.0/433 |
法兰 |
|
60 |
615 |
5.5/474 |
7.2/465 |
8.8/457 |
10.5/448 |
||||
|
200 |
544 |
5.7/421 |
7.2/414 |
8.6/408 |
10.1/401 |
||||
|
600 |
479 |
6.0/372 |
7.3/367 |
8.5/362 |
9.8/356 |
||||
|
2000 |
417 |
6.5/326 |
7.7/322 |
8.9/319 |
10.1/315 |
||||
|
6000 |
305 |
5.6/239 |
6.6/237 |
7.5/326 |
8.4/233 |
||||
|
20000 |
228 |
5.5/180 |
6.4/179 |
6.9/178 |
7.7/177 |
||||
|
60000 |
188 |
5.5/149 |
6.1/149 |
6.7/149 |
7.2/148 |
||||
|
NYP111 |
80 |
111.4 |
20 |
615 |
6.7/660 |
9.2/647 |
11.2/634 |
13.6/622 |
法兰 |
|
60 |
615 |
6.9/664 |
9.4/652 |
11.5/642 |
13.9/631 |
||||
|
200 |
544 |
7.1/589 |
9.3/580 |
11.0/573 |
13.2/563 |
||||
|
600 |
479 |
7.3/521 |
9.5/514 |
11.1/508 |
13.1/502 |
||||
|
2000 |
417 |
7.7/455 |
9.7/450 |
11.0/447 |
12.7/442 |
||||
|
6000 |
305 |
6.9/335 |
8.4/332 |
9.4/331 |
10.6/328 |
||||
|
20000 |
228 |
6.3/251 |
7.5/250 |
8.2/249 |
9.2/248 |
||||
|
60000 |
188 |
6.2/209 |
7.1/208 |
7.6/208 |
8.5/207 |
||||
|
NYP160 |
100 |
160 |
20 |
600 |
8.9/930 |
12.1/916 |
15.3/902 |
17.5/888 |
法兰 |
|
60 |
600 |
9.4/935 |
12.6/922 |
15.8/910 |
19.0/898 |
||||
|
200 |
550 |
12.3/866 |
15.3/859 |
18.3/852 |
21.3/845 |
||||
|
600 |
480 |
10.2/754 |
12.8/747 |
15.4/740 |
18.0/737 |
||||
|
2000 |
355 |
9.1/560 |
11.1/556 |
13/552 |
15.1/548 |
||||
|
6000 |
319 |
10.0/505 |
11.7/502 |
13.5/500 |
15.2/497 |
||||
|
NYP220 |
125 |
220 |
20 |
430 |
8.8/902 |
11.9/880 |
15.0/858 |
18.0/836 |
法兰 |
|
60 |
430 |
9.0/909 |
12.0/890 |
15.0/871 |
18.0/852 |
||||
|
200 |
355 |
8.5/753 |
11.1/739 |
13.7/726 |
16.3/713 |
||||
|
600 |
320 |
9.4/682 |
11.8/671 |
14.1/660 |
16.5/649 |
||||
|
2000 |
254 |
9.1/544 |
11.0/537 |
13.0/530 |
15.1/523 |
||||
|
6000 |
244 |
10.1/483 |
11.9/478 |
13.6/473 |
15.4/468 |
||||
|
20000 |
160 |
9.1/347 |
10.5/345 |
11.9/343 |
13.3/341 |
||||
|
60000 |
117 |
8.4/256 |
9.4/255 |
10.4/254 |
11.4/253 |
||||
|
NYP320 |
125 |
320 |
20 |
430 |
13.0/1306 |
18.0/1270 |
22.0/1235 |
26.0/1200 |
法兰 |
|
60 |
430 |
13.0/1316 |
18.5/1285 |
22.0/1255 |
26.5/1225 |
||||
|
200 |
355 |
11.8/1091 |
15.5/1068 |
19.1/1046 |
22.8/1024 |
||||
|
600 |
320 |
13.2/987 |
16.5/968 |
19.7/950 |
22.9/932 |
||||
|
2000 |
284 |
14.2/881 |
17.4/867 |
20.6/854 |
23.8/841 |
||||
|
6000 |
222 |
13.7/693 |
16.2/684 |
18.7/675 |
21.2/666 |
||||
|
20000 |
168 |
13.2/529 |
15.3/525 |
17.3/522 |
19.4/519 |
||||
|
60000 |
125 |
12.0/397 |
13.7/396 |
15.3/395 |
16.9/394 |
||||
|
NYP650 |
150 |
650 |
20 |
315 |
19.0/1921 |
26.0/1857 |
33.0/1794 |
|
法兰 |
|
60 |
315 |
20.0/1940 |
26.4/1886 |
33.2/1832 |
|
||||
|
200 |
284 |
17.9/1756 |
24.0/1711 |
30.4/1666 |
|
||||
|
600 |
253 |
17.6/1572 |
22.7/1534 |
28.9/1500 |
|
||||
|
2000 |
196 |
15.7/1225 |
20.6/1201 |
24.5/1176 |
|
||||
|
6000 |
160 |
16.0/1008 |
19.8/993 |
22.3/978 |
|
||||
|
20000 |
117 |
13.6/745 |
16.5/738 |
19.2/731 |
|
||||
|
60000 |
100 |
15.0/645 |
17.2/643 |
19.5/640 |
|
||||
|
NYP727 |
150 |
727 |
20 |
315 |
21.5/2135 |
29.4/2058 |
37.3/1980 |
|
法兰 |
|
60 |
315 |
22.4/2157 |
29.8/2090 |
37.3/2026 |
|
||||
|
200 |
280 |
19.6/1928 |
26.7/1874 |
33.5/1820 |
|
||||
|
600 |
245 |
19.6/1696 |
25.1/1652 |
31.2/1611 |
|
||||
|
2000 |
200 |
18.7/1394 |
23.3/1363 |
28.5/1334 |
|
||||
|
6000 |
170 |
19.2/1195 |
23.3/1175 |
27.9/1155 |
|
||||
|
20000 |
125 |
17.0/888 |
20.1/878 |
23.3/868 |
|
||||
|
60000 |
100 |
16.8/720 |
19.5/717 |
22.3/713 |
|
||||
|
NYP1670 |
200 |
1670 |
20 |
250 |
38.0/3852 |
52.0/3690 |
66.0/3529 |
|
法兰 |
|
60 |
250 |
40.0/3900 |
54.0/3763 |
68.0/3626 |
|
||||
|
200 |
225 |
37.5/3535 |
50.0/3424 |
62.5/3313 |
|
||||
|
600 |
195 |
37.0/3079 |
48.0/2990 |
58.6/2900 |
|
||||
|
2000 |
160 |
35.0/2547 |
44.0/2485 |
53.0/2422 |
|
||||
|
6000 |
135 |
34.6/2177 |
42.0/2138 |
50.0/2100 |
|
||||
|
20000 |
112 |
35.0/1830 |
41.5/1810 |
48.0/1790 |
|
||||
|
60000 |
85 |
36.0/1405 |
35.7/1400 |
40.6/1392 |
|||||
